 Analytical HPLC System 分析型液相系統

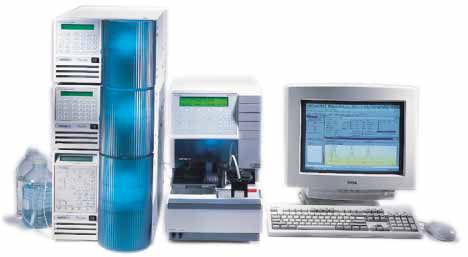

 ProStar Analytical HPLC Systems - A Comprehensive Collection

For over two decades, Varian’s broad range of reliable and easy-to-use liquid chromatography instruments have served pharmaceutical, environmental, chemical, and other industrial R&D and QC/QA laboratories worldwide. Our analytical systems meet the rigorous requirements of routine analyses in addition to the performance standards of research and development.
Every ProStar module is quality assured for reliability and performance by Varian’s ISO 9001-certified factory. If you require any combination of sensitivity, high sample throughput, sophisticated data handling, GLP compliance, or special services, expect this and more from Varian’s ProStar line.
Series 200 Pumps
210 Analytical-to-preparative flow rates
215 Analytical-to-prep flow rates at higher pressures
220 Isocratic, microbore-to-analytical flows
230 Ternary, microbore-to-analytical flows
240 Quaternary solvents, microbore-to-analytical
Series 300 Detectors
310 UV/Vis, analytical, programmable
320 UV/Vis, analytical-to-prep
330 Photodiode array, analytical-to-prep
340 UV/Vis, basic, analytical-to-prep
345 UV/Vis, dual wavelength
350 Refractive index, analytical
363 Programmable Fluorescence
9080 Electrochemical, microbore-to-analytical

Series 400 AutoSamplers
400 Standard, loop overfill
410 Variable volume, analytical-to-preparative
420 Variable volume, analytical, high-precision
430 Variable volume, variable 96-well plate
From Components to Systems
ProStar modules can be fully integrated and fully automated or operated as intelligent standalone units. In fact, each ProStar module can be easily integrated into your current HPLC system. Plus, ProStar modules can be upgraded to meet your ever-changing demands.
More Choices Offer Better Solutions
Because not all applications are the same, ProStar modules are designed to fit your specific need. To get the right HPLC system for your lab, you can select a preconfigured system or custom choose each module. And because each module can be specialized with options for your particular application, the possibilities are endless.

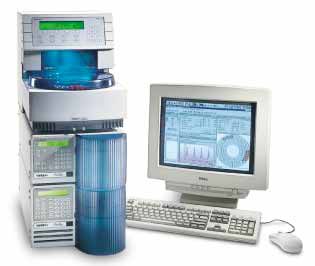

Routine Isocratic System
■ 340 UV/Vis single wavelength detector (optional
   detectors: 310 or 320 UV/Vis)
■ 210 analytical-to-semipreparative solvent delivery
   module (optional pump: 220 with microbore-toanalytical
   flow rates)
■ 400 AutoSampler
ProStar isocratic HPLC systems with easy-to-use features are reliable and efficient for busy laboratories.

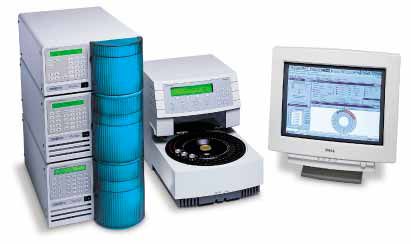

QA/QC Binary System
■ 310 UV/Vis detector (optional detectors: 320 UV/Vis,
   330 photodiode array, or 345 UV/V dual wavelength)
■ Two 210 analytical-to-semipreparative solvent delivery
   modules
■ 410 AutoSampler with variable volume (optional
   autosamplers:400 routine or 430 with variable 96-well
   plates)
ProStar binary gradient HPLC systems are versatile and perform ideally for contract testing and quality control applications.


R&D Ternary System
■ 330 Photodiode array detector (optional detectors: 310 UV/Vis,
 320 UV/Vis, or 345 UV/Vis dual wavelength)
■ 230 Ternary solvent delivery modules with microbore-to-analytical
  flows (optional pumps: Two 215 analytical-to-semipreparative)
■ 410 AutoSampler with variable volume (optional autosamplers: 420
  with variable volume and vial format or 430 with variable 96-well plates)
ProStar’s elite photodiode array detector-based systems provide users with
full spectral purity information using the latest hardware and software tools.


R&D Quaternary System
■ 330 Photodiode array detector (optional detector: 345 UV/Vis dual
  wavelength)
■ 240 Quaternary solvent delivery module
■ 410 AutoSampler with variable volume (optional autosampler: 420 with
  variable volume and vial format)

Research Professional System
■ 330 Photodiode array detector (optional detector: 310 UV/Vis)
■ 230 Ternary solvent delivery modules with microboreto-analytical flows
  (optional pump: Three 215 analytical-to-semipreparative)
■ 430 AutoSampler with variable 96-well plate (optional autosampler:
   420 with variable vial format)
ProStar research HPLC systems with
easy-to-use features are reliable and
efficient for busy laboratories.

Columns and Accessories
Varian offers a full line of column ovens, fraction collectors, columns, and supplies to complete your system.
From packing material to axial compression column packers for preparative purposes, Varian is your one stop shop.

Model No.
Description
210
Analytical-to-preparative solvent delivery module
215
Analytical-to-preparative solvent delivery module with higher back pressure rating than ProStar 210
220
Isocratic, microbore-to-analytical solvent delivery module
230
Ternary, microbore-to-analytical solvent delivery module
230 inert
Ternary, inert version solvent delivery module
240
Microbore-to-analytical solvent delivery module with quaternary solvent capabilities
240 inert
Inert version solvent delivery module with quaternary solvent capabilities
310
Programmable wavelength, analytical UV/Vis detector
320
Programmable wavelength, dual-path analytical and preparative UV/Vis detector
330
High resolution photodiode array detector (190 nm to 800 nm)
340
Basic, analog UV/Vis detector
345
Dual-wavelength output, programmable UV/Vis detector
363
Programmable, scanning fluorescence detector
400
Basic, full-loop fill autosampler
410
Variable volume, analytical-to-prep autosampler
420
Variable vial format, high-precision analytical autosampler
430
Variable format, 96-well plate autosampler
510
Programmable column thermostat
