| Thermionics Ion Pumps |

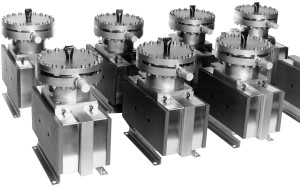

50 l/sec Ion Pumps
PS-1000(N) |

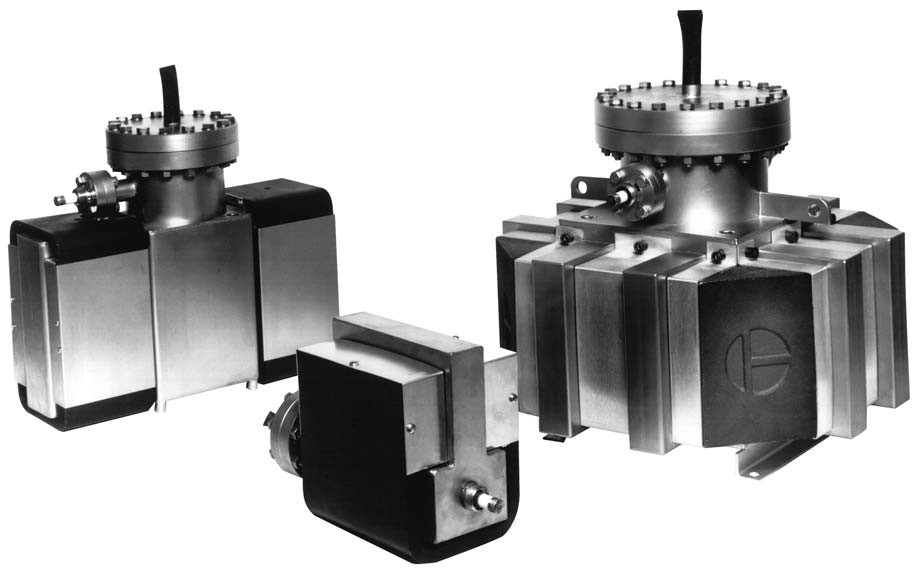

30 Years Experience in Ion Pump Development and Manufacturing
■ Most complete line of ion pumps, power supplies and accessories
■ Fastest, most reliable ion pumps available
■ Thermionics ion pumps are 100% compatible with your existing Agilent (Varian) or
Gamma (Perkin-Elmer) power supply.
Sizes
■ 0.2 l/sec to 1,000 l/sec
Models
■ Diode configurations
Standard (IP Series)
Noble (D-I) (NP Series)
Hydrogen (HP Series)
■ Triode configurations
Standard (TP Series)
■ Combo-Vac Pumps,
Combining a Noble (D-I) ion pump, Titanium sublimation pump (TSP), and Cryo-shroud
Each pump is:
■ Able to provide continuous and contaminant free pumping
■ Reliable from 1 micron to 2 x 10e-11 Torr (measured)
■ Free from backstreaming
■ Bakeable to 300°C assembled
■ Bakeable to 450°C magnets removed
■ Able to act as its own vacuum gauge
|
|
Construction
■ All pumps are manufactured to exacting UHV standards
■ Pump bodies, flanges and element anodes are made of 304 stainless steel
■ Double re-entrant electrical insulators are made of highquality aluminum oxide, with sputter shields
■ Pump magnets are high-strength ferrites
|
Choosing the Right Pump for Your Application
■ As a full line vacuum manufacturer, Thermionics can provide the best pump for your job without reservation or bias
■ We manufacture a full range of ion pumps
■ Thermionics will custom design pumps for a specific application
|
Service and Parts
We service, repair, and supply replacement parts for all pumps including: Thermionics, Agilent (Varian), Gamma (Perkin-Elmer), Ultek, Ion Equipment, Hughes, Ulvac, Anelva, etc.
|
Rebuilding
We rebuild and repair all sizes and manufacturers of ion pumps, elements, and power supplies. Please refer to the back page for further information.
|
Power Supplies, Cables
We offer five power supply models, from a portable, batterypowered supply to a large, reliable 1.0 A output power supply capable of starting and operating a 1,000 l/s ion pump. See back page for full power supply line. We sell replacement cables for Agilent (Varian) and Gamma (Perkin-Elmer) power supplies. |
| |
| Appendage Pumps |
AIP-2/133 |
Appendage pumps
■ 0.2 l/sec, 2 l/sec, and 8 l/sec sizes
Features
■ Pumps are either vacuum processed and pinched off (after 400°C+ bake out) or shipped
in up-to-air configuration
■ Inlet ports are 3/8”, 3/4” O.D. copper or SS tubes; 1.33” mini or 2.75” O.D. ConFlat type
flanges
■ High-voltage feedthroughs are Thermionics, Perkin-Elmer (Alberox type), Varian style or
standard BNC type connectors
■ All pumps are tested for vacuum integrity and excessive electrical leakage current |
|
| |
| Custom Design ion Pumps |
SP-150 |
To meet your special application requirements, any of our pumps can be built in a custom configuration. All of the pumps are manufactured in the USA. Prefab pump subassemblies are kept in stock. We can modify them, process, and ship your custom pump in two weeks or less.
In-Line, Tube Type Ion Pump, Straight Through, 150 l/sec, Line of Sight Ion Pump
This unusual ion pump illustrates Thermionics’ ability to meet special needs. In this case, the need was for pumping on either side of the magnetic deflection sector of an ultra-high vacuum mass spectrometer. Either of the large ports or the small ports can be attached to the system, providing good conductance and a savings in the cost of fittings. This pump allows line-of-sight conductance for X-ray beams, laser beams, and highenergy particle beams. Because of the small magnetic fringing field, it is not recommended for low-energy particle beams.
Length 321/4” Large flange 8” O.D., 4.5” I.D.
Height 163/4” Small flange 6” O.D., 2.5” I.D. |
|
| |
| Diode Pumps |
20 l/sec Ion Pump
 |

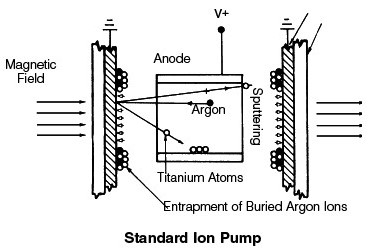

We manufacture three configurations of diode pumps: standard, hydrogen and noble (D-I) types. For theory of operation, selection criteria, pumping speed curves and alternative configuration options (e.g., double-ended pumps) see Thermionics main catalog or contact a Thermionics sales engineer.
Diode Speed
( l/sec ) |
Standard
Model No. |
Hydrogen
Model No. |
Noble (D-I)
Model No. |
| 11 |
IP-011 |
HP-011 |
NP-011 |
| 20 |
IP-020 |
HP-020 |
NP-020 |
| 25 |
IP-025 |
HP-025 |
NP-025 |
| 50 |
IP-050 |
HP-050 |
NP-050 |
| 100 |
IP-100 |
HP-100 |
NP-100 |
| 140 |
IP-140 |
HP-140 |
NP-140 |
| 150 |
IP-150 |
HP-150 |
NP-150 |
| 200 |
IP-200 |
HP-200 |
NP-200 |
| 270 |
IP-270 |
HP-270 |
NP-270 |
| 400 |
IP-400 |
HP-400 |
NP-400 |
| 500 |
IP-500 |
HP-500 |
NP-500 |
| 1000 |
IP-1000 |
HP-1000 |
NP-1000 |
|
|
| |
| Triode Pumps |
 |

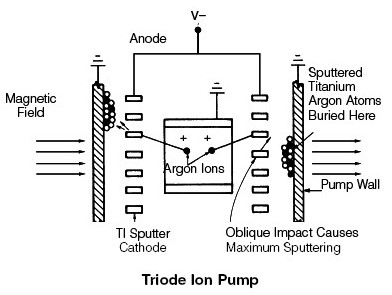

Triode pumps have the highest speeds for pumping noble gases. The cathode design consists of multiple strips of titanium held at a negative high voltage. For theory of operation, selection criteria, pumping speed curves and alternative configurations (e.g. double-ended pumps) see Thermionics’ main catalog or contact a Thermionics sales engineer.
| Speed ( l/sec ) |
Model No. |
| 20 |
TP-020 |
| 30 |
TP-030 |
| 60 |
TP-060 |
| 110 |
TP-110 |
| 220 |
TP-220 |
| 400 |
TP-400 |
| 800 |
TP-800 |
|
|
| |
| Combo-Vac Pumps |
COV-2000
|
Thermionics Combo-Vac pumps combine a noble diode (D-I) ion pump, a titanium sublimation pump (TSP), and a cryo-shroud, in a single package. This combination provides ideal UHV pumping characteristics for the processing of high power vacuum tubes, x-ray sources, etc. Prices for Combo-Vac pumps include power supplies and cables for the ion pump and TSP.
| Nom. Speed l/sec Shroud |
| N2 |
Air |
Coolant |
Model No. |
| 500+ |
30/60 |
Water |
COV-500 |
| 1000 |
120 |
LN2 |
COV-750 |
| 1000 |
220 |
LN2 |
COV-1000 |
| 2000 |
400 |
LN2 |
COV-2000 |
|
|
| |
| Ion Pump Control Units and Cables |
PS-100(N) |
Thermionics’ ion pump control units provide matched power and control for all the pumps listed in this brochure. When ordering, please specify diode or triode operation. Control units for triode pumps have the suffix “N” added to their model number.
Features
■ Reliable—proven design
■ Includes high voltage cable
■ Recorder output
|
|

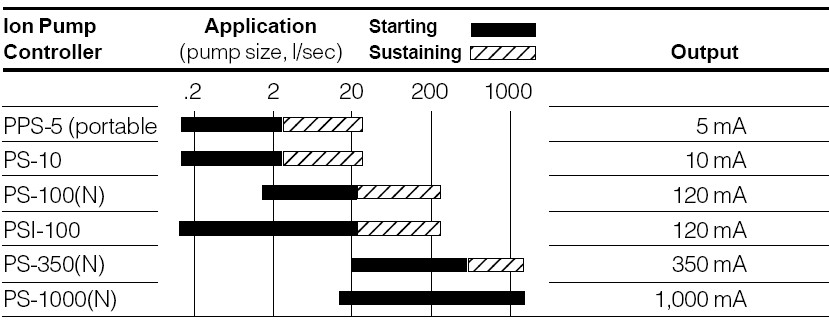

The table below indicates the range of controller sizes recommended for various pump sizes. For more specific application information, please contact the factory.
* Includes HV cable |
| |
|
|
