| Vacuum Pump - Chemistry Hybrid Vacuum Pump |
|
Combines the advantages of a chemistry diaphragm pump and the ultimate vacuum of a two-stage rotary vane pump (2 x 10-3 mbar) .Typical applications: Freeze drying, distillation, drying ovens, rotary evaporators, concentrators, etc. Anti-corrosion design combination of a two-stage rotary vane pump and a chemistry diaphragm pump built of corrosion-resistant materials.
|
|
Rotary Vane Pump
＋
Diaphragm Pump
∥
Chemistry Hybrid Pump |
Features
■ Vacuum performance of a two-stage rotary vane pump
high pumping speed and low ultimate vacuum (5.9 m³/h; 2 x 10-3 mbar)
■ Corrosion attack reduced to a minimum
when working with corrosive vapours
■ Drastically reduced amount of waste oil
through extended oil change and maintenance intervals
■ Solvent recovery next to 100%
easy and effective by means of a vapour condenser (optional) at the outlet
■ Low life cycle costs
e. g. no need for a cold trap in most cases
|
Technical Data
|
Units
|
RC 6
|
|
Max. pumping speed 50/60 Hz
|
m3/h
|
5.9 / 6.9
|
|
Ultimate vacuum (partial) without gas ballast
|
mbar
|
4 x 10-4
|
|
Ultimate vacuum (total) without gas ballast
|
mbar
|
2 x 10-3
|
|
Ultimate vacuum (total) with gas ballast
|
mbar
|
1 x 10-2
|
|
Water vapour tolerance
|
mbar
|
*
|
|
Oil capacity (B-Oil) min.
|
l
|
0.34
|
|
max.
|
l
|
0.53
|
|
Inlet connection
|
|
Small flange DN 16
|
|
Outlet connection
|
|
Hose nozzle DN 10
|
|
Motor power
|
kW
|
0.37
|
|
Nominal rpm 50/60 Hz
|
min-1
|
1500/1800
|
|
Dimensions (L x B x H)
|
mm
|
510 x 305 x 230
|
|
Protection class
|
|
IP 40
|
|
Weight (ready for use)
|
kg
|
24.2
|
|
|
|
|
Vacuum Pump - Standard Diaphragm Pump
|
|
Technical Data
|
Units
|
ME 2
|
ME 4
|
ME 4R
|
ME 8
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
1.9 / 2.2
|
3.6 / 4.0
|
3.6 / 4.0
|
7.2 / 7.8
|
|
Ultimate vacuum (total)
|
mbar
|
80
|
80
|
100 / 4 bar
|
80
|
|
Inlet connection
|
|
Hose nozzle 10mm
|
Hose nozzle 10mm
|
Hose nozzle 10mm
|
Hose nozzle 10mm
|
|
Outlet connection
|
|
Silencer
|
Silencer
|
Hose nozzle 10mm
|
Silencer
|
|
Dimensions (L x W x H)
|
mm
|
275 x 173 x 240
|
266 x 235 x 175
|
266 x 276 x 395
|
315 x 235 x 200
|
|
Technical Data
|
Units
|
ME 16
|
MZ 2
|
MZ 2D
|

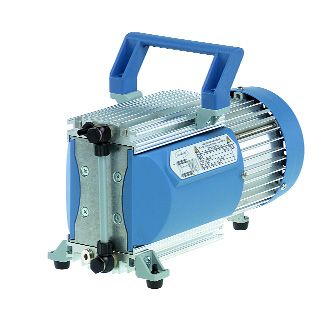

MD 1
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
12.0 / 12.9
|
1.9 / 2.2
|
2.2 / 2.4
|
1.2 / 1.4
|
|
Ultimate vacuum (total)
|
mbar
|
80
|
9
|
4
|
1.5
|
|
Inlet connection
|
|
Small flange NW25
|
Hose nozzle 10mm
|
Small flange NW16
|
Hose nozzle 6mm
|
|
Outlet connection
|
|
Silencer
|
Silencer
|
Silencer
|
Silencer
|
|
Dimensions (L x W x H)
|
mm
|
485 x 230 x 290
|
266 x 235 x 175
|
266 x 235 x 175
|
303 x 165 x 215
|
|
Technical Data
|
Units
|
MD 4
|
MD 12
|
MV 2
|
MV 10
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
3.3 / 3.8
|
9.6 / 10.4
|
1.9 / 2.2
|
8.1 / 8.8
|
|
Ultimate vacuum (total)
|
mbar
|
2
|
2
|
0.6
|
0.6
|
|
Inlet connection
|
|
Small flange NW16
|
Small flange NW25
|
Small flange NW16
|
Small flange NW25
|
|
Outlet connection
|
|
Silencer
|
Silencer
|
Silencer
|
Silencer
|
|
Dimensions (L x W x H)
|
mm
|
315 x 235 x 179
|
485 x 230 x 290
|
315 x 235 x 179
|
485 x 230 x 290
|
|
Technical Data
|
Units
|

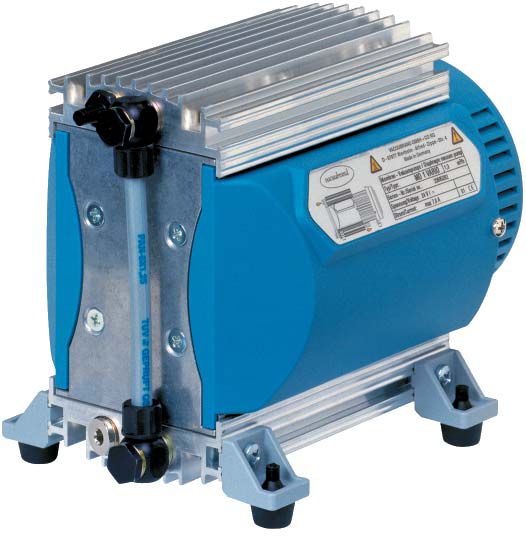

MD 1 VARIO-SP
|
MD 4 VARIO
|
MV 2 VARIO
|
MV 10 VARIO
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
1.7
|
4.6
|
2.8
|
10
|
|
Ultimate vacuum (total)
|
mbar
|
1
|
1
|
0.3
|
0.3
|
|
Inlet connection
|
|
Hose nozzle 6mm
|
Small flange NW16
|
Small flange NW16
|
Small flange NW25
|
|
Outlet connection
|
|
Silencer
|
Silencer
|
Silencer
|
Silencer
|
|
Dimensions (L x W x H)
|
mm
|
223 x 143 x 163
|
345 x 230 x 235
|
345 x 230 x 235
|
490 x 245 x 325
|
|
|
|
|
Vacuum Pump - Chemistry Diaphragm Pump
|
|
Technical Data
|
Units
|
ME 2C
|
ME 4C
|
ME 8C
|
ME 16C
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
1.9 / 2.2
|
3.6 / 4.0
|
2 × 3.6 / 4.0
|
10.1 / 11.6
|
|
Ultimate vacuum (total)
|
mbar
|
80
|
80
|
80
|
80
|
|
Inlet connection
|
|
Hose nozzle
10mm
|
Hose nozzle
10mm
|
2 × Hose nozzle
10mm
|
Small flange
NW25
|
|
Outlet connection
|
|
Hose nozzle
10mm
|
2 × Hose nozzle
10mm
|
4 × Hose nozzle
10mm
|
Hose nozzle
10mm
|
|
Dimensions (L x W x H)
|
mm
|
258 x 173 x 240
|
266 x 241 x 175
|
315 x 241 x 179
|
500 x 235 x 290
|
|
Technical Data
|
Units
|
MZ 2C
|
MD 1C
|
MD 4C
|
MD 12C
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
1.7 / 2.0
|
1.3 / 1.5
|
3.0 / 3.5
|
8.3 / 8.9
|
|
Ultimate vacuum (total)
|
mbar
|
9
|
2
|
2
|
2
|
|
Inlet connection
|
|
Hose nozzle
10mm
|
Hose nozzle
10mm
|
Hose nozzle
10mm
|
Small flange
NW25
|
|
Outlet connection
|
|
Hose nozzle
10mm
|
Hose nozzle
8mm
|
Hose nozzle
10mm
|
Hose nozzle
10mm
|
|
Dimensions (L x W x H)
|
mm
|
266 x 241 x 175
|
315 x 165 x 220
|
315 x 241 x 179
|
500 x 235 x 290
|
|
Technical Data
|
Units
|

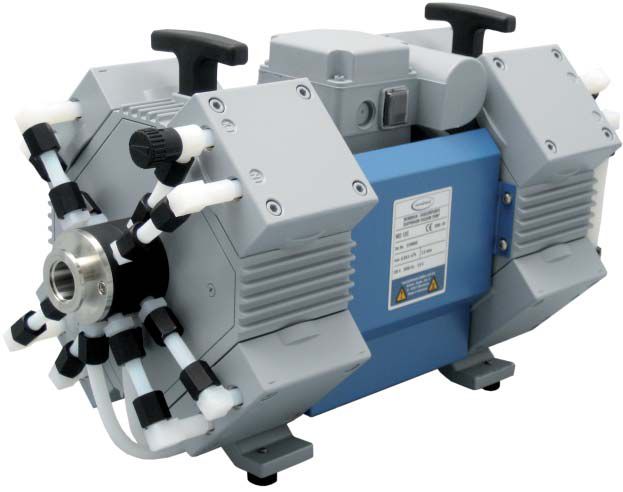

MV 10C
|
MZ 2C VARIO
|
MD 4C VARIO
|
MV 10C VARIO
|
|
Max. volume flow rate 50/60 Hz
|
m3/h
|
7 / 7.5
|
2.5
|
3.8
|
8.2
|
|
Ultimate vacuum (total)
|
mbar
|
0.9
|
9
|
2
|
0.6
|
|
Inlet connection
|
|
Small flange
NW25
|
Hose nozzle
10mm
|
Hose nozzle
10mm
|
Hose nozzle
10mm
|
|
Outlet connection
|
|
Silencer
|
Silencer
|
Silencer
|
Silencer
|
|
Dimensions (L x W x H)
|
mm
|
500 x 235 x 290
|
340 x 241 x 232
|
340 x 241 x 232
|
500 x 245 x 330
|
|
|
|
|
|
|
