Vacuum Pump - Diffusion Pump – AX-65 / HS-2 / VHS-4 / VHS-6
|
|
|
Pump Model
|
AX-65
|
HS-2
|
VHS-4
|
VHS-6
|
|
Previous Model Number
|
-
|
0160
|
0183
|
184
|
|
Speed, l/s (operating range)
|
|
|
|
|
|
Air
|
65
|
160
|
750
|
1,550
|
|
Helium & Hydrogen
|
90
|
200
|
940
|
1,930
|
|
Maximum forepressure, Torr (mbar)
|
|
|
|
|
|
No load
|
0.75 (1.00)
|
0.55 (0.72)
|
0.65 (.86)
|
0.65 (0.85)
|
|
Full load
|
0.60 (0.78)
|
0.40 (0.52)
|
0.55 (.73)
|
0.55 (0.72)
|
|
Maximum throughput,
|
|
|
|
|
|
T-l/s (mbar-l/s) In operating range
|
0.19 (0.25)
|
0.60 (0.80)
|
1.5 (2.0)
|
2.4 (3.2)
|
|
@ 1 x 10-2 Torr (1.3 x 10-2 mbar)
|
0.30 (0.40)
|
0.70 (0.93)
|
2.5 (3.2)
|
3.5 (4.5)
|
|
Minimum recommended backing pump
for maximum throughput, cfm (m3/hr)
|
0.15 (0.25)
|
5.0 (8.5)
|
10 (17)
|
17.0 (28.9)
|
|
Backstreaming rate at inlet flange
mg/cm2/min (standard cold cap)*
|
2 x 10-4
|
1 x 10-3
|
5 x 10-4
|
5 x 10-4
|
|
Warmup time, minutes
|
7
|
15
|
10
|
10
|
|
Cooldown time, minutes
With quick cool coil, where applicable
|
-
|
10
|
10
|
10
|
|
Fluid charge
|
30cc
|
100 cc
|
300 cc
|
500 cc
|
|
Electrical requirements
|
1 ph
50/60 Hz
90/115/165/220 V
|
1 ph
50/60 Hz
120/240 V
|
1 ph
50/60 Hz
120/208/240 V
|
1 ph
50/60 Hz
120/208/240 V
|
|
Power, Watts
|
200/250
|
450
|
1450
|
2200
|
|
Cooling water, U.S. gpm (l/hr)
at 60-80° F (15-26 °C)
|
N/A
|
0.1 (20)
|
0.15 (30)
|
0.25 (50)
|
|
|
|
|
Vacuum Pump - Diffusion Pump – VHS-250 / VHS-10 / VHS-400 / HS-16
|
|
|
|
|
|
|
VHS-250
|
VHS-10
|
VHS-400
|
HS-16
|
|
Pump Model
|
VHS-250
|
VHS-10
|
VHS-400
|
HS-16
|
|
Previous Model Number
|
–
|
0185
|
–
|
0164
|
|
Speed, l/s (operating range)
|
|
|
|
|
|
Air
|
2,125
|
3,650
|
4,500
|
6,000
|
|
Helium & Hydrogen
|
2,660
|
4,560
|
5,625
|
7,500
|
|
Maximum forepressure, Torr (mbar)
|
|
|
|
|
|
No load
|
0.65 (.85)
|
0.65 (.85)
|
0.65 (.85)
|
0.65 (.85)
|
|
Full load
|
0.55 (0.72)
|
0.55 (0.72)
|
0.55 (0.72)
|
0.55 (.72)
|
|
Maximum throughput,
|
|
|
|
at 8100 W
|
|
T-l/s (mbar-l/s) In operating range
|
2.6 (3.5)
|
6.3 (8.4)
|
6.3 (8.4)
|
9.5 (11.7)
|
|
@ 1 x 10-2 Torr (1.3 x 10-2 mbar)
|
3.5 (4.5)
|
7.5 (10.0)
|
7.5 (10.0)
|
11.5 (15.3)
|
|
Minimum recommended backing pump
for maximum throughput, cfm (m3/hr)
|
17.0 (28.9)
|
30 (51)
|
30 (51)
|
80 (136)
|
|
Backstreaming rate at inlet flange
mg/cm2/min (standard cold cap)*
|
5 x 10-4
|
5 x 10-4
|
1 x 10-3
|
1.5 x 10-3
|
|
Warmup time, minutes
|
15
|
15
|
30
|
45
|
|
Cooldown time, minutes
With quick cool coil, where applicable
|
10
|
25
|
25
|
48
|
|
Fluid charge
|
1,000 cc
|
1,000 cc
|
3 U.S. qts.
|
5 U.S. qts.
|
|
Electrical requirements
|
3 ph
50/60 Hz
120/208/240 V
|
3 ph
50/60 Hz
208/240/380/480 V
|
3 ph
50/60 Hz
208/240/380/480 V
|
3 ph
50/60 Hz
240/415/480 V
|
|
Power, Watts
|
2200
|
4400
|
4400
|
8100/9600
|
|
Cooling water, U.S. gpm (l/hr)
at 60-80° F (15-26 °C)
|
0.25 (50)
|
0.40 (80)
|
0.40 (80)
|
1.5 (300)
|
|
|
|

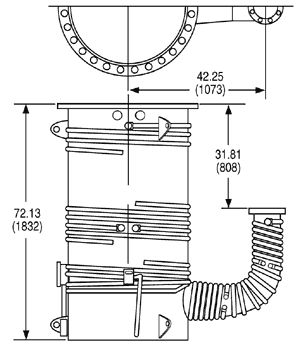

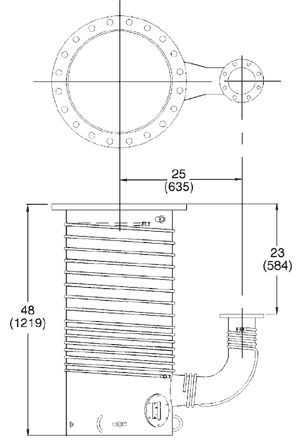

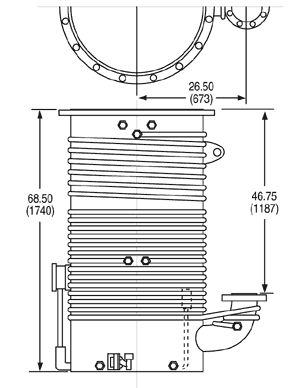

| Vacuum Pump - Diffusion Pump – HS-20 / HS-32 / HS-35 |
|
|
Pump Model
|
HS-20
|
HS-32
|
NHS-35
|
|
Previous Model Number
|
0165
|
0167
|
0169
|
|
Speed, l/s (operating range), Air
|
10,000
|
17,300
|
28,000
|
|
Helium & Hydrogen
|
12,500
|
21,625
|
35,000
|
|
Maximum forepressure, Torr (mbar)
|
|
|
|
|
No load
|
0.65 (.85)
|
0.50 (.65)
|
0.55 (.71)
|
|
Full load
|
0.55 (.72)
|
0.35 (.45)
|
0.40 (.52)
|
|
Maximum throughput,
|
|
|
|
|
T-l/s (mbar-l/s) In operating range
|
12.5 (16.7)
|
30 (40)
|
25 (33)
|
|
@ 1 x 10-2 Torr (1.3 x 10-2 mbar)
|
18 (23.4)
|
35 (45.5)
|
35 (45.5)
|
|
Minimum recommended backing pump
for maximum throughput, cfm (m3/hr)
|
100 (170)
|
300 (510)
|
300 (510)
|
|
Backstreaming rate at inlet flange
mg/cm2/min (standard cold cap)*
|
1.5 x 10-3
|
7 x 10-4
|
5 x 10-4
|
|
Warmup time, minutes
|
60
|
60
|
-
|
|
Cooldown time, minutes
With quick cool coil, where applicable
|
85
|
180
|
180
|
|
Fluid charge
|
3 U.S. gal.
(4.7 liters)
|
3 U.S. gal.
(11.3 liters)
|
3 U.S. gal.
(11.3 liters)
|
|
Electrical requirements
|
3 ph, 50/60 Hz
240/415/480 V
|
3 ph, 50/60 Hz
240/415/480 V
|
3 ph, 50/60 Hz
240/415/480 V
|
|
Power, Watts
|
12000
|
24000
|
24000
|
|
Cooling water, U.S. gpm (l/hr)
at 60-80° F (15-26 °C)
|
1.5 (300)
|
4.0 (800)
|
4.0 (800)
|
|
|
|
