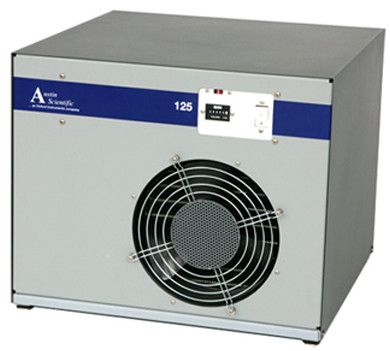

Helium Compressor - M125
|
|
Standard industry compressor, specifically designed to run a single
CP-8 or CP-8LP cryopump. Available as 208 VAC, single phase
operation. The M125 compressors are available in either air or
water-cooled models.
|
|
|
M125 Helium Compressor Technical Specifications
|
|
Helium Flow
|
12.5 SCFM
|
|
Envelope (height x width x depth)
|
19” x 19.5” x 16”
|
|
Weight
|
160 lbs
|
|
Air or Water Cooled
|
|
Ambient TempRange
|
65F - 105F
|
|
Chilled Water Limits
|
60F - 80F
|
|
Minimum required water flow
|
.5 Gallons / minute
|
|
Static Helium Charge
|
190 psi (+/- 5 psi)
|
|
Power
|
|
Input (VAC)
|
Single Phase 50Hz or 60Hz 190-260 Vac
|
|
Power consumption
|
~1.8 kilowatts
|
|
Largest compatible pump
|
Cryo-Plex 8 or equivalent
|
|
|
|
|
Helium Compressor - M400
|
|
Our newest addition the M400 bridges the gap between small and
large compressors based on the customer focused design of the
M600 with lower power consumption and the proven reliability of
the Hitachi Helium Scroll Pump. We're so confident in the proven
scroll technologies and robust design we doubled our warranty on
these compressors.
|
|
|
M400 Helium Compressor Technical Specifications
|
|
Helium Flow SCFM
|
40
|
|
Static Helium Charge (+/- 5 PSIG)
|
240
|
|
Power Consumption
|
7Kw 3 Phase 50Hz or 50Hz
|
|
Low Voltage
|
190 - 260 Vac
|
|
High Voltage
|
345 - 525 Vac
|
|
Recommended Breaker Rating
|
25 Amp
|
|
Water Cooled Helium Compressor
|
|
Minimum required water flow
|
1.5 gallons/min
|
|
Water temp operating range
|
60F - 80F
|
|
Dimensions
|
H21" x W17.25" x D19.75"
|
|
Weight
|
260lbs
|
|
Air Cooled Helium Compressor
|
|
Temperature Operating Range
|
65F - 105F
|
|
Dimensions
|
H26" x W17.25" x D32"
|
|
Weight
|
300lbs
|
|
|
|
|
Helium Compressor - M600
|
|
Helium compressors are at the heart of the cryogenic pumping system,
providing ultra high purity helium to single or multiple pumps. Completing
our offer of cryogenic systems, Austin Scientific offers industry proven
compressors, also at highly competitive prices, and with flexible
configurations. Based on proven scroll compressor technology, the
Austin Scientific M600 air or water cooled helium compressors are highly
versatile, with particular focus on ease of installation and maintenance.
|
|
|
M600 Helium Compressor Technical Specifications
|
|
Helium Flow
|
60 SCFM
|
|
Static Helium Charge
|
240 psi (+/- 5 PSIG)
|
|
Operating Voltage
|
Power Consumption
|
|
Recommended Breaker Rating - 30 Amp
|
3 Phase 50Hz or 60Hz
|
|
Low Voltage - 190-260 Vac
|
9 kw
|
|
High Voltage - 345 - 525 Vac
|
9 kw
|
|
M600W - Water Cooled Helium Compressor
|
|
Minimum required water flow
|
1.5 gallons / min
|
|
Maximum Water Temperature
|
60F - 80F
|
|
Dimensions
|
H21"x W17.75"x D19.75"
|
|
Weight
|
260 lbs
|
|
M600A - Air Cooled Helium Compressor
|
|
Temperature Operating Range
|
65F - 105F
|
|
Dimensions
|
H26"x W17.75"x D32"
|
|
Weight
|
300 lbs
|
|
|
|
|
Helium Compressor - T8W,T10,T1096
|
T8W |
Connecting Chart |
T1096 |
|
Technical Data
|
T8W
|
T10
|
T1096
|
|
Helium Throughput
|
12.5 SCFM
|
45 SCFM
|
60 SCFM
|
|
Dimension (LxWxH)
|
489 x 492 x 530 mm
|
511 x 498 x 638 mm
|
456 x 516 x 592 mm
|
|
Weight
|
73Kg
|
146Kg
|
110~125Kg
|
|
Electrical Power
|
208/230VAC, 60Hz,1.5KW
|
208/230VAC,
50/60Hz,5KW
|
208/230VAC, 60Hz,5.5KW
|
|
210/240VAC, 50Hz,1.5KW
|
210/240VAC, 50Hz,5.5KW
|
|
Largest compatible
Cryopump
|
CTI Cryo-Torr8
|
CTI Cryo-Torr10
|
CTI / ASC Cryopump
|
|
ASC Cryo-Plex8
|
ASC Cryo-Plex10
|
On-Board or Cryo-Torr
|
|
Cooling
|
Water
|
Water
|
Water
|
|
|
|
|
|
|
