Helium Leak Detector
VS Series Automatic Portable Leak Detectors - High Performance Instruments
■ Easy-to-Use – Two Button Operation ■ Powerful – Broad Range of Test Methods
■ Versatile – Multiple System Configurations ■ Dependable – Robust Design
■ Truly Portable – Wireless Remote Control/Display
|
VS Series Leak Detector
|

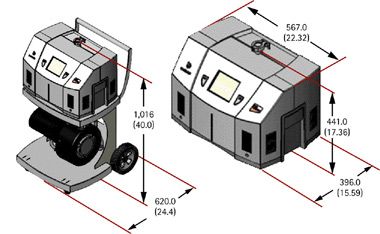

Dimensions: millimeters (inches)
|
Technical Specification
| Model names and types of primary pump |
| PR02 (portable) |
DS-42 rotary-vane pump
|
| MR15 (mobile) |
DS-302 rotary-vane pump
|
| MD30 (mobile) |
TS-620 dry scroll pump
|
| BR15 (bench-mounted) |
DS-302 rotary-vane pump
|
| BD30 (bench-mounted) |
TS-620 dry scroll pump
|
| Minimum detectable leak at 1000 ppm ambient helium |
| atm-cc/sec helium |
5 × 10-12
|
| mbar-liters/sec helium |
5 × 10-12
|
| Pa-m³/sec helium |
5 × 10-13
|
|
Maximum test-port pressure
|
10 torr/13 mbar/1330 Pa
|
|
Helium pumping speed
|
1.8 l/sec at test port in fine test
|
|
Calibration routine
|
Automated or manual
|
|
Background helium suppression
|
Pushbutton-initiated auto zero and auto zero<zero
|
|
User interface
|
High-clarity color touch screen
|
|
Selectable languages
|
English, French, German, Japanese, Korean,
Mandarin, Spanish
|
|
Programmable functions for auto cycling
|
Roughing time, test time, reject set points
|
|
Response time
|
<0.5 seconds
|
|
Set points (standard)
|
3 for leak rate, 1 for pressure, 1 for audio
|
|
Communications interface
|
RS-232 at 9600 baud (DB-9S connector)
|
|
Conformance standards
|
UL/CSA, CE
|
|
